String Extraction & Analysis

String Extraction & Analysis

Strings embedded in a binary are among the most immediately useful artifacts in malware analysis. Before you understand a single line of assembly code, the strings inside an executable can reveal C2 domains, file paths, registry keys, API function names, error messages, and even the author's native language.

1. Why Strings Matter

Strings analysis can reveal:

• C2 infrastructure -- URLs, IP addresses, domain names
• Persistence mechanisms -- Registry key paths like CurrentVersion\Run
• Dropped files -- File paths such as %APPDATA%\config.tmp
• Network protocols -- HTTP headers, User-Agent strings
• Capabilities -- API function names suggesting specific behaviors
• Debug artifacts -- Error messages, PDB paths
• Encryption -- References to crypto APIs or hardcoded keys

Important: Strings are theories, not conclusions. A string referencing a registry key does not prove the malware modifies that key -- it only suggests it might. Behavioral analysis validates what static strings suggest.

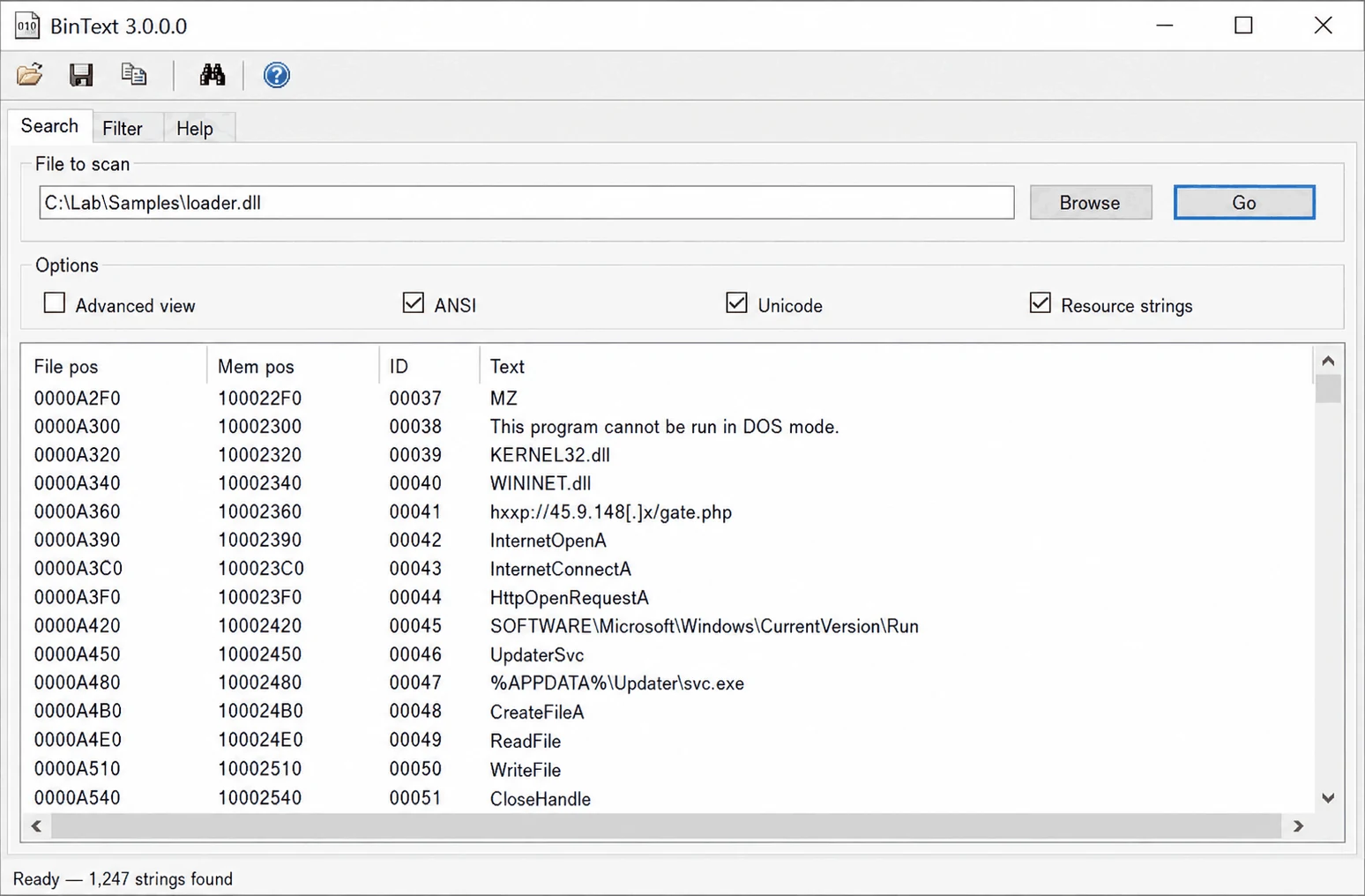

2. String Extraction Tools

The pestr Utility (REMnux)

Designed for PE files, extracts both ASCII and Unicode strings in a single pass:

$ pestr brbbot.exe | more
!This program cannot be run in DOS mode.
.text
.rdata
brbconfig.tmp
exec
file
sleep
encode
Software\Microsoft\Windows\CurrentVersion\Run
brbbot
Microsoft Enhanced Cryptographic Provider v1.0
Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 6.1; Trident/4.0)

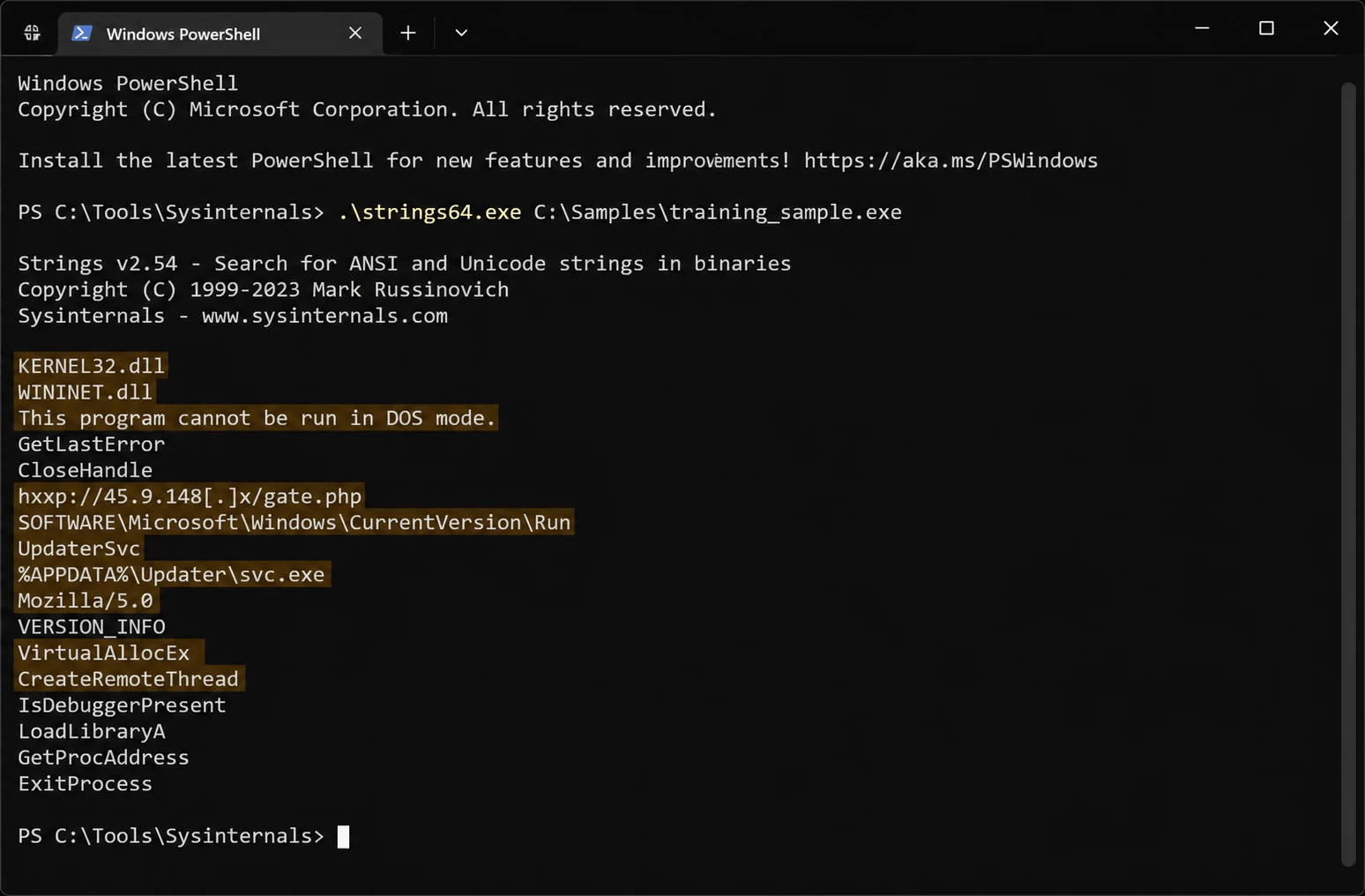

The strings Command (Linux)

# ASCII strings (scan whole file)
$ strings -a suspicious.exe

# Unicode strings (little-endian, common in Windows)
$ strings -el suspicious.exe

# With file offset (useful for hex editor correlation)
$ strings -a -t x suspicious.exe

# Combine ASCII and Unicode
$ strings -a suspicious.exe > ascii.txt
$ strings -el suspicious.exe > unicode.txt
$ cat ascii.txt unicode.txt | sort -u > all_strings.txt

Pro Tip: Always use -a to scan the entire file, not just initialized sections.

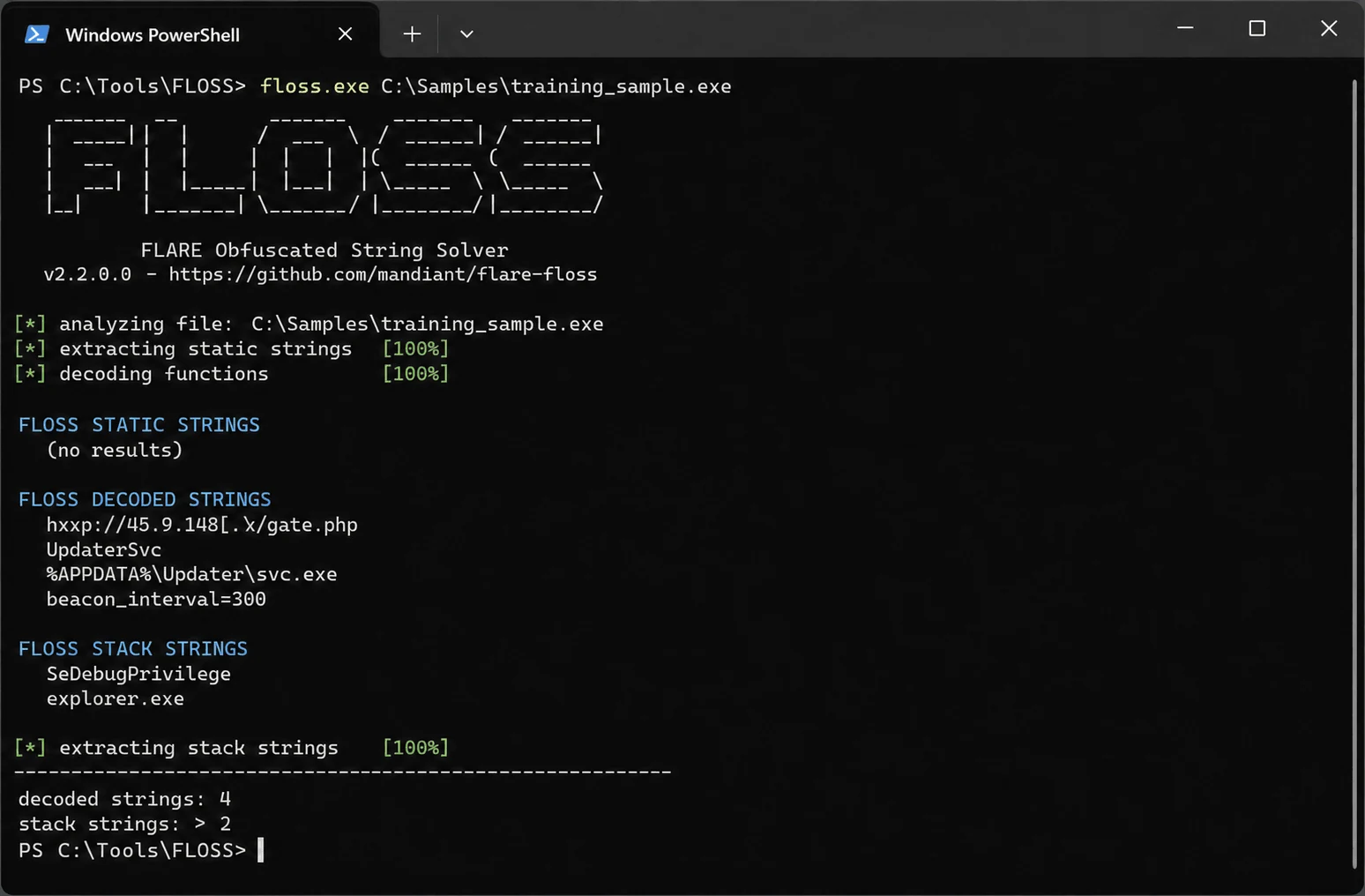

FLOSS (FLARE Obfuscated String Solver)

FLOSS does everything strings does but also automatically decodes obfuscated strings:

$ floss suspicious.exe

FLOSS static strings
---------------------
CreateRemoteThread
VirtualAllocEx
http://evil.com/gate.php

FLOSS decoded strings
---------------------
C:\Users\Public\payload.dll      # Was XOR-encoded
api.telegram.org/bot             # Was stack-built
HKLM\SOFTWARE\Microsoft\Windows  # Was concatenated

FLOSS stack strings
-------------------
cmd.exe /c del %0               # Built on stack, invisible to strings

FLOSS finds strings strings completely misses via static decoding (XOR, Base64, ROT13), stack string recovery, and tight string recovery.

3. String Categories: What to Look For

Interpreting brbbot.exe Strings

From the strings output, an analyst can form theories:

1. brbconfig.tmp -- Likely a configuration file dropped to disk
2. Software\Microsoft\Windows\CurrentVersion\Run -- Persistence via Run key
3. Mozilla/4.0 (compatible; MSIE 8.0...) -- Custom User-Agent for HTTP C2
4. exec, file, conf, sleep -- Possible bot commands
5. Microsoft Enhanced Cryptographic Provider -- Uses Windows crypto APIs

4. Handling String Obfuscation

Common Obfuscation Techniques

Decoding Base64

$ echo "aHR0cDovL2V2aWwuY29tL3BheWxvYWQuZXhl" | base64 -d
http://evil.com/payload.exe

Brute-Forcing Single-Byte XOR

with open("suspicious.exe", "rb") as f:
    data = f.read()

for key in range(1, 256):
    decoded = bytes([b ^ key for b in data])
    if b"http://" in decoded or b"https://" in decoded:
        print(f"Key 0x{key:02x}: Found URL pattern")
    if b"HKLM" in decoded or b"CurrentVersion" in decoded:
        print(f"Key 0x{key:02x}: Found registry pattern")

5. Practical Workflow

1. Run pestr or strings -a for a quick first look
2. Run strings -el to capture Unicode strings
3. Run FLOSS to recover obfuscated and stack-built strings
4. Categorize findings into IOCs, capabilities, and attribution hints
5. Search unique strings on Google/VirusTotal for family identification
6. Document theories to guide your next analysis steps
7. Cross-reference with import table analysis

Common Pitfall: Do not trust all strings blindly. Malware authors sometimes embed decoy strings to mislead analysts.

MITRE ATT&CK: String obfuscation maps to T1027 - Obfuscated Files or Information and T1140 - Deobfuscate/Decode Files or Information.
