PE Header Analysis

PE Header Analysis

The Portable Executable (PE) format is the native executable format for Windows. Every .exe, .dll, .sys, and .scr file follows this specification. Understanding PE headers reveals architecture, capabilities, compilation details, and anomalies -- all without executing the binary.

1. PE Format Structure

+----------------------------------+
|     DOS Header (64 bytes)        |  "MZ" magic, pointer to PE header
+----------------------------------+
|     DOS Stub                     |  "This program cannot be run..."
+----------------------------------+
|     PE Signature (4 bytes)       |  "PE\0\0" (bytes 50 45 00 00)
+----------------------------------+
|   COFF/File Header (20 bytes)    |  Machine type, section count, timestamp
+----------------------------------+
|   Optional Header (variable)     |  Entry point, image base, subsystem
|     - Standard fields            |
|     - Data Directories           |  Import/export tables, resources
+----------------------------------+
|   Section Headers Table          |  .text, .data, .rdata, .rsrc, .reloc
+----------------------------------+
|   Section Bodies                 |  Actual code and data
+----------------------------------+

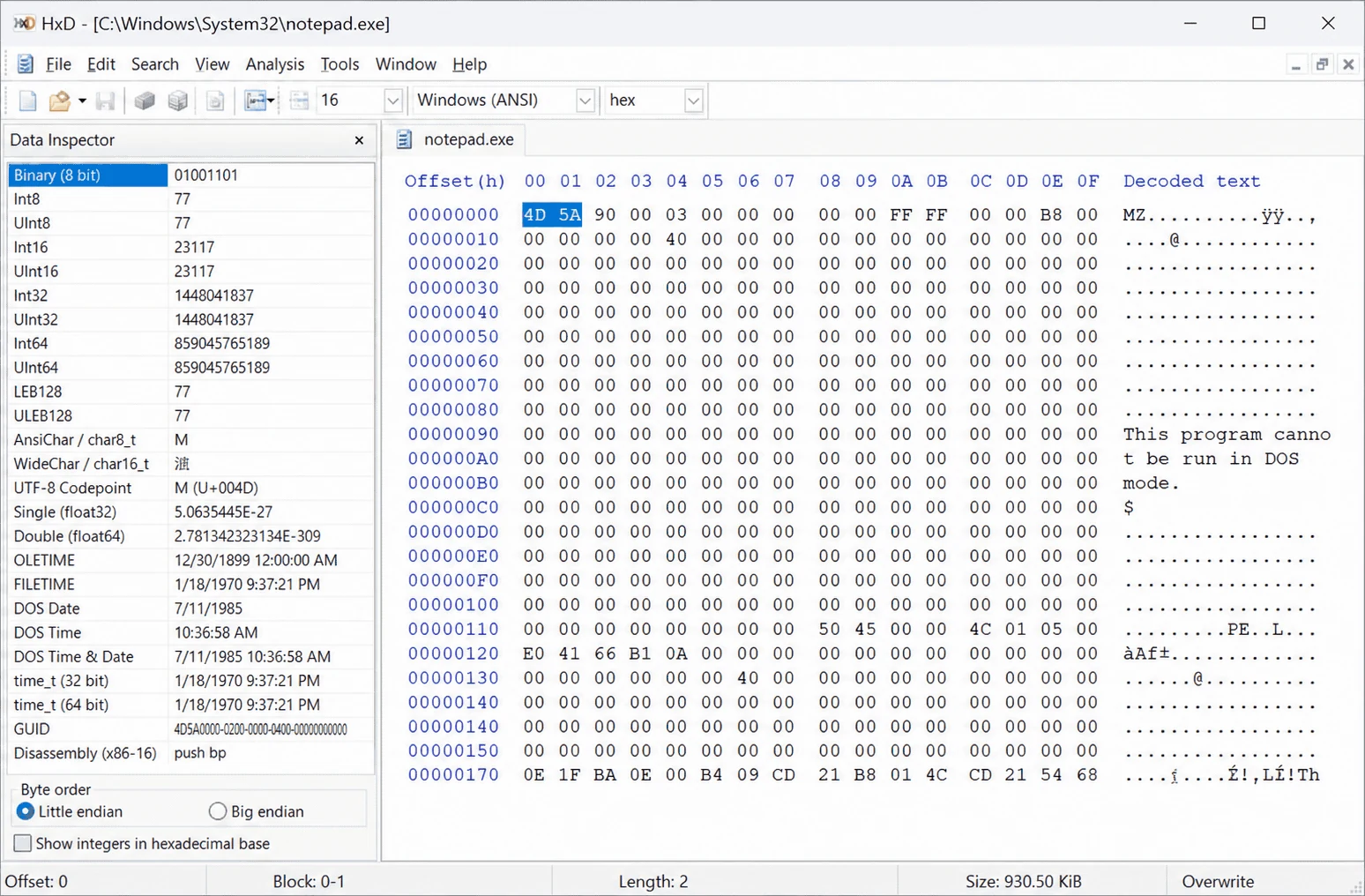

2. DOS Header

3. COFF File Header

Compilation Timestamps

import pefile
from datetime import datetime

pe = pefile.PE("suspicious.exe")
timestamp = pe.FILE_HEADER.TimeDateStamp
dt = datetime.utcfromtimestamp(timestamp)
print(f"Compilation: {dt.strftime('%Y-%m-%d %H:%M:%S')} UTC")

# Red flags:
# - Date in the far future (2030+)
# - Date of 0 (Jan 1, 1970) -- deliberately zeroed
# - Delphi binaries commonly show June 19, 1992 (a linker artifact, not a rule)

4. Optional Header Key Fields

Understanding RVA vs. VA vs. File Offset

Data Directories

5. Section Table

Section Characteristics Flags

0x00000020  CNT_CODE               Contains executable code
0x00000040  CNT_INITIALIZED_DATA   Contains initialized data
0x20000000  MEM_EXECUTE            Executable memory
0x40000000  MEM_READ               Readable memory
0x80000000  MEM_WRITE              Writable memory

Red flag: READ + WRITE + EXECUTE (0xE0000000) -> Self-modifying/unpacking code

6. Tools for PE Header Analysis

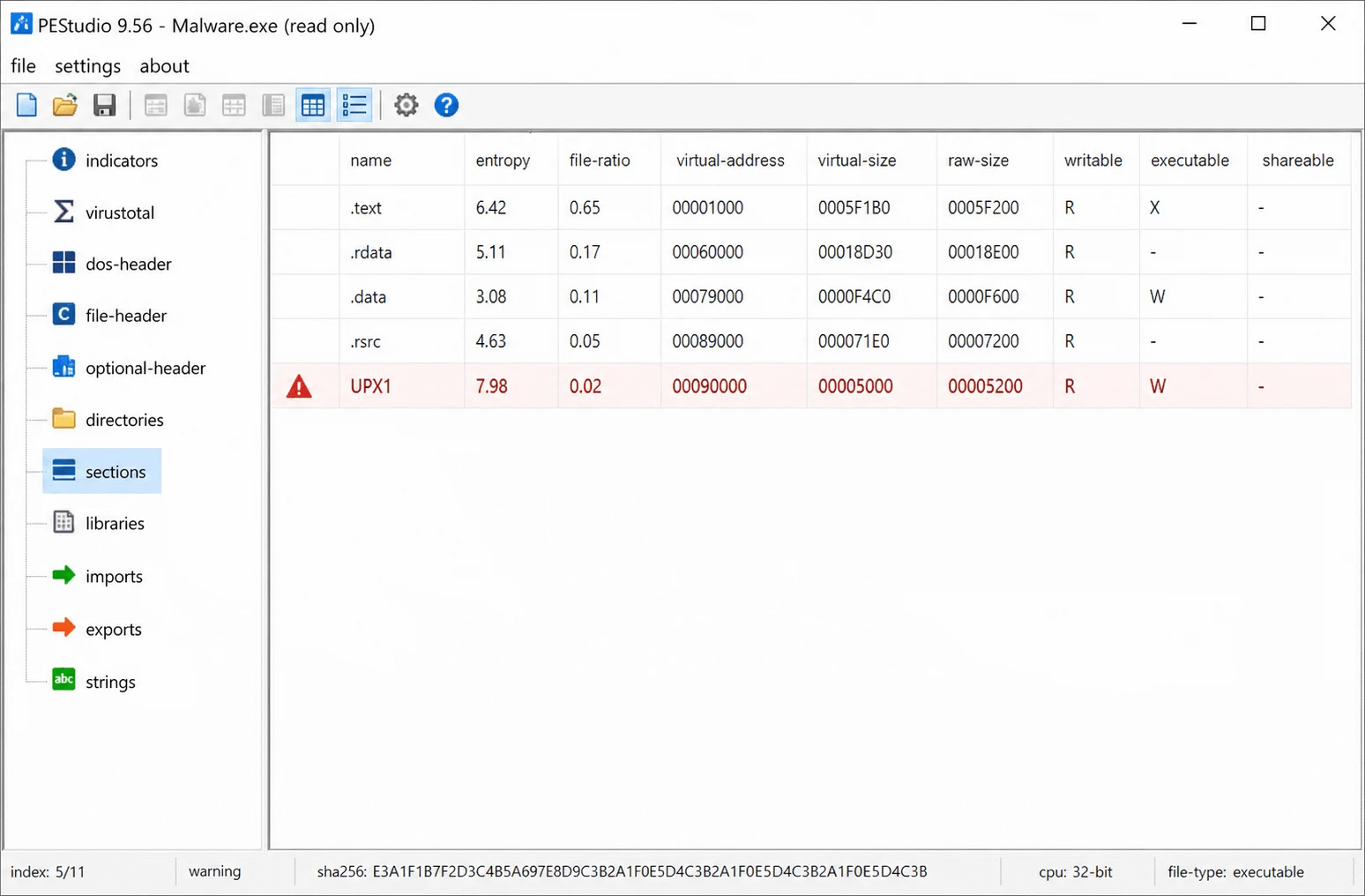

PEStudio (Windows)

Comprehensive view of PE headers with automatic anomaly flagging. Calculates hashes, displays imports, shows section entropy.

Detect It Easy / Exeinfo PE

$ diec suspicious.exe
PE64
Compiler: Microsoft Visual C/C++(2010)[-]
Linker: Microsoft Linker(10.0)[GUI64]

pefile (Python)

import pefile
pe = pefile.PE("suspicious.exe")

print(f"Entry Point: {hex(pe.OPTIONAL_HEADER.AddressOfEntryPoint)}")
print(f"Image Base:  {hex(pe.OPTIONAL_HEADER.ImageBase)}")
print(f"Subsystem:   {pe.OPTIONAL_HEADER.Subsystem}")

print("\nSections:")
for section in pe.sections:
    name = section.Name.decode().strip('\x00')
    entropy = section.get_entropy()
    flags = hex(section.Characteristics)
    status = "HIGH ENTROPY" if entropy > 7.0 else ""
    print(f"  {name:10s} entropy={entropy:.2f} chars={flags} {status}")

CAPA (Mandiant)

$ capa suspicious.exe
# Maps PE structure to ATT&CK techniques automatically

7. PE Analysis Workflow

1. Open in PEStudio/DiE -- overview of anomalies, compiler, packer
2. Check timestamp -- plausible? Matches campaign timeline?
3. Inspect sections -- high entropy, unusual names, suspicious flags?
4. Examine entry point -- points to .text or unusual section?
5. Review data directories -- import table present? .NET CLR header?
6. Check security flags -- ASLR, DEP/NX enabled or disabled?
7. Run CAPA -- automated capability detection
8. Document findings -- section hashes, anomalies, compiler info

Common Pitfall: A "clean" PE header does not mean benign. Sophisticated malware uses legitimate compilers and standard PE structures.

MITRE ATT&CK: PE manipulation relates to T1027.002 - Software Packing and T1036.001 - Invalid Code Signature.
