Indicators of Compromise (IOCs)

Indicators of Compromise (IOCs)

Indicators of Compromise (IOCs) are forensic artifacts -- specific pieces of evidence -- that identify potentially malicious activity on a system or network. They are the currency of threat intelligence: the things you extract during analysis and share with defenders so they can detect the same threat across their environment.

IOCs are not just technical data points. They represent the trail an attacker leaves behind. Your job as an analyst is to find, validate, categorize, and communicate these indicators so that defenders can act on them.

The IOC Classification Framework

IOCs exist at different levels of abstraction. The widely-used Pyramid of Pain (developed by David Bianco) ranks indicator types by how difficult they are for an attacker to change:

         /\
        /  \        TTPs (Tactics, Techniques, Procedures)
       /    \       Hardest for attackers to change
      /──────\
     / Tools  \     Specific malware families, frameworks
    /──────────\
   / Network /  \   C2 domains, IPs, URLs
  /  Host     \  \  Registry keys, mutexes, file paths
 / Artifacts   \  \
/────────────────\
/ Hash Values     \  Easiest for attackers to change
/──────────────────\  (just recompile)

The higher up the pyramid, the more painful it is for an attacker to evade your detection. A hash-based IOC is trivially defeated by recompiling the malware. But detecting the attacker's behavioral patterns (TTPs) forces them to fundamentally change their approach.

IOC Categories in Detail

1. File-Based Indicators (Atomic)

These are the most basic IOCs -- direct artifacts from the malware file itself.

Practical workflow for file-based IOCs:

# Compute all common hashes at once on REMnux:
sha256sum sample.exe
md5sum sample.exe
sha1sum sample.exe
ssdeep sample.exe

# Compute imphash with Python:
python3 -c "
import pefile
pe = pefile.PE('sample.exe')
print('Imphash:', pe.get_imphash())
"

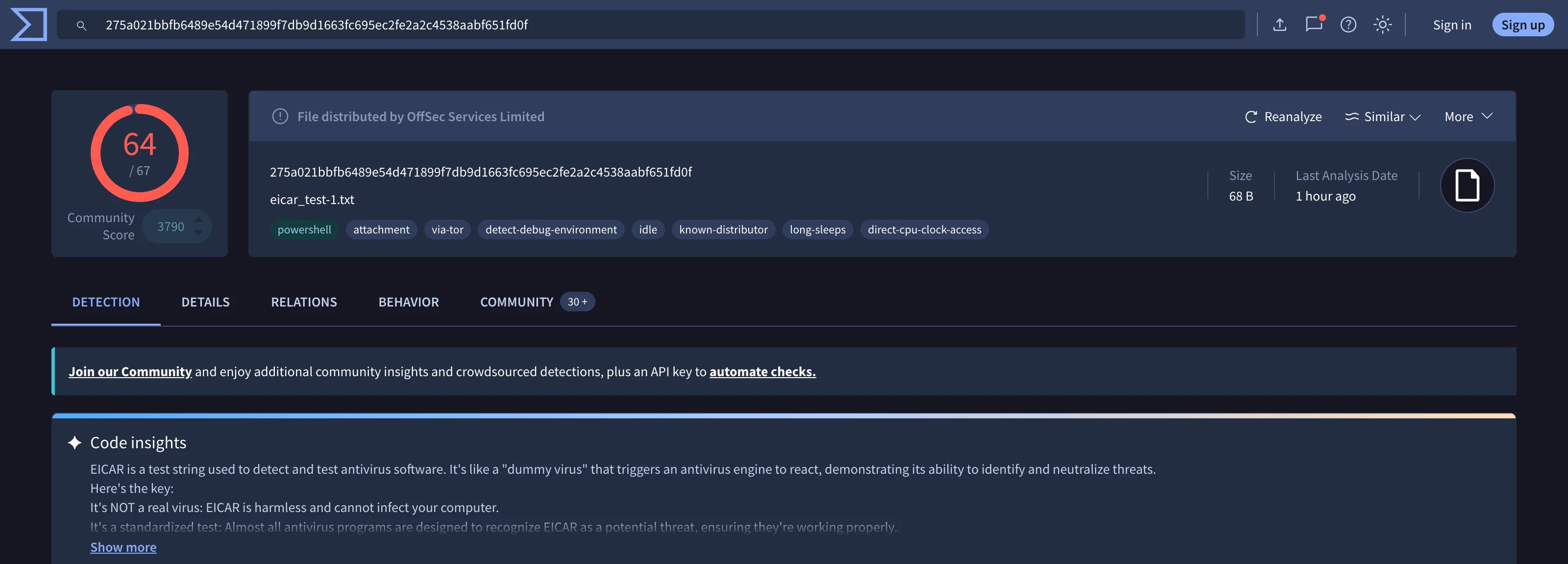

# Search the hash on VirusTotal via API:
curl -s "https://www.virustotal.com/api/v3/files/HASH_HERE" \
  -H "x-apikey: YOUR_API_KEY" | python3 -m json.tool

2. Host-Based Indicators

These IOCs reveal what the malware did to the system during execution. They are more durable than file hashes because they reflect the malware's behavior rather than its specific binary.

Practical workflow for host-based IOCs:

# Extract autoruns (persistence) on Windows:
autorunsc.exe -a * -c -s > autoruns_output.csv

# Compare registry snapshots with Regshot:
# 1. Take "1st shot" before execution
# 2. Execute malware
# 3. Take "2nd shot" after execution
# 4. Click "Compare" to see all registry changes

# List mutexes held by a process (Windows):
handle.exe -a -p [PID] | findstr Mutant

3. Network-Based Indicators

Network IOCs reveal how the malware communicates with attacker infrastructure. These are especially valuable because they can be deployed as firewall rules, DNS sinkholes, and IDS signatures.

Practical workflow for network IOCs:

# Extract DNS queries from a PCAP:
tshark -r capture.pcap -T fields -e dns.qry.name -Y "dns.qry.type == 1" | sort -u

# Extract HTTP requests:
tshark -r capture.pcap -T fields -e http.host -e http.request.uri -Y "http.request"

# Extract destination IPs:
tshark -r capture.pcap -T fields -e ip.dst -Y "ip.dst" | sort -u | uniq -c | sort -rn

# Extract JA3 fingerprints:
tshark -r capture.pcap -T fields -e tls.handshake.ja3 -Y "tls.handshake.type == 1"

# From INetSim logs:
grep "DNS:" /var/log/inetsim/service.log
grep "HTTP:" /var/log/inetsim/service.log

IOC vs IOA: Two Complementary Approaches

Pro Tip: The most effective detection strategies combine both IOCs and IOAs. IOCs give you quick wins for known threats. IOAs catch novel variants that share behavioral patterns with known threats.

The IOC Lifecycle

IOCs are not permanent. They have a lifecycle that affects their value:

1. DISCOVERY        Analyst extracts IOC during sample analysis
       |
2. VALIDATION       Confirm the IOC is accurate (not a false positive)
       |
3. ENRICHMENT       Add context: threat actor, campaign, confidence level
       |
4. DISSEMINATION    Share with defenders, threat intel platforms
       |
5. DEPLOYMENT       Implement as detection rules (SIEM, IDS, EDR, firewall)
       |
6. MONITORING       Track hits and effectiveness
       |
7. DEPRECATION      IOC becomes stale as attacker rotates infrastructure

IOC Expiration Guidelines

Sharing IOCs: STIX and TAXII

The security industry uses standardized formats to share IOCs:

STIX (Structured Threat Information eXpression) is a JSON-based language for describing threat intelligence. A STIX bundle contains objects like indicators, malware descriptions, attack patterns, and relationships between them.

TAXII (Trusted Automated eXchange of Intelligence Information) is the transport protocol for sharing STIX data between organizations, typically over HTTPS APIs.

Other Common Formats

Practical IOC Extraction Workflow

When you analyze a sample, follow this systematic process to extract IOCs:

Phase 1: Static Analysis IOCs

[ ] File hashes (MD5, SHA1, SHA256, imphash, ssdeep)
[ ] Embedded strings (URLs, IPs, domains, file paths)
[ ] PE metadata (compile timestamp, section names, resources)
[ ] Digital signature information (if present)
[ ] YARA rule matches

Phase 2: Dynamic Analysis IOCs

[ ] Files created/modified/deleted (paths + hashes of dropped files)
[ ] Registry keys created/modified
[ ] Processes spawned (parent-child relationships)
[ ] Mutexes created
[ ] Network connections (IPs, domains, URLs, ports)
[ ] DNS queries made
[ ] HTTP request patterns (User-Agent, URI patterns, POST data)

Phase 3: IOC Validation and Documentation

For each IOC, record:
  - Type: [hash | domain | IP | registry | mutex | ...]
  - Value: [the actual indicator]
  - Source: [which analysis phase produced it]
  - Confidence: [high | medium | low]
  - Context: [what does this indicator represent?]
  - ATT&CK mapping: [technique ID if applicable]

Common Pitfalls

Pitfall: Recording IOCs without context. A raw list of hashes and IPs is far less useful than IOCs annotated with what they represent and how confident you are.

Pitfall: Treating all IOCs as equally reliable. Strings found in static analysis are hypotheses. IOCs confirmed through dynamic execution are validated evidence.

Pitfall: Ignoring IOC expiration. C2 infrastructure gets rotated. Hashes change with recompilation. Always consider the freshness of your IOCs.

Pro Tip: Use OSINT pivoting to expand your IOC set. One domain might resolve to an IP that hosts other malicious domains. One mutex name might link your sample to an entire malware family, as demonstrated in the Bunitu malware investigation where the mutex value LXCV0IMGIXS0RTA1 connected multiple related samples.
